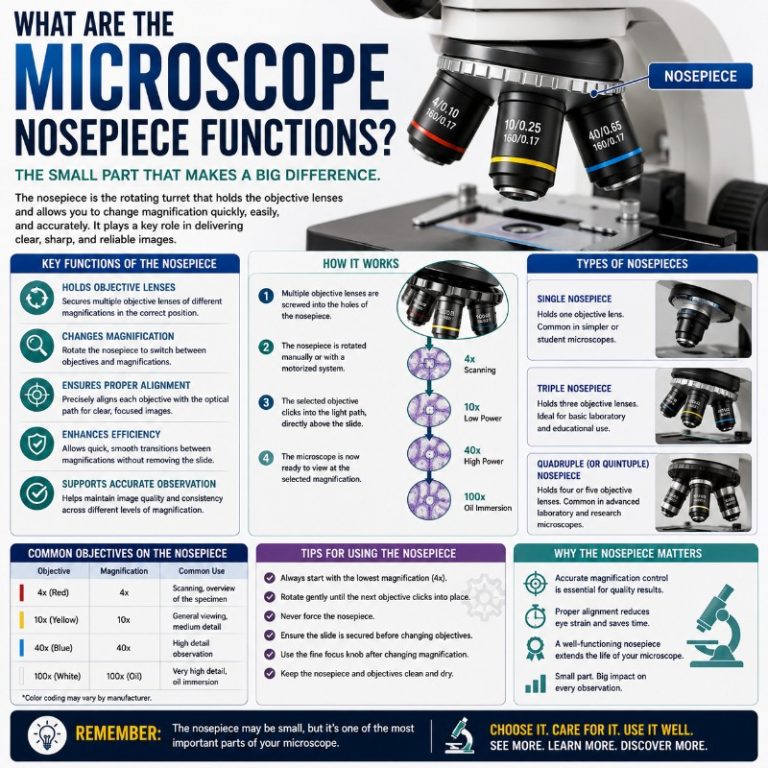

What Are The Microscope Nosepiece Functions?

The microscope is one of the most critical tools in the scientific world. It allows us to see things too small to be seen with the naked eye and opens up a whole new world of discovery. It started as a simple gadget invented around 1590. Though it is unclear whether it was Hans Lippershey or Hans and Zacharias Janssen who created it, the microscope has become crucial in scientific discoveries, which had profound effects on the development of society.

Before we highlight one of its essential parts, let us first study the parts and functions of the modern microscope.

Microscope Parts and Functions

There are several types of microscopes, but we will look at the parts of the compound microscope in this article. You must understand that this tool is more complicated than those with one lens.

The primary purpose of a microscope is to magnify an image. The first microscopes used a single lens, but compound microscopes used multiple lenses to create a more detailed image.

Here are essential parts of the compound microscope:

  • Eyepiece – The lens the observer looks through to view the specimen. A 10X or 15X magnifier is usually included in the eyepiece.
  • Diopter Adjustment – This is used to alter the focusing of one eyepiece to compensate for any difference in eyesight between your two eyes.
  • Body tube (Head) – The body tube attaches the eyepiece to the objective lenses.
  • Arm – The arm joins the body tube to the microscope’s base.
  • Coarse adjustment – Brings the sample into focus.
  • Fine adjustment – It fine-tunes the focus and improves the detail in the sample.
  • Nosepiece – The objective lenses are housed in a rotating turret. To vary the objective lenses, the nosepiece is turned.
  • Objective lenses – One of the most critical components of a compound microscope is the lenses nearest the subject.
  • A basic microscope has three, four, or five objective lenses ranging in power from 4X to 100X. When focusing on the microscope, be careful that the objective lens doesn’t contact the slide since it might break the slide and damage the sample.
  • Aperture – The hole in the middle of the stage through which light from the illuminator passes to illuminate the specimen.
  • On/off switch – The illuminator is switched off and on with a push-button switch located on the microscope’s base.
  • Illumination – A microscope’s light source is a bulb. Traditional microscopes utilized mirrors to reflect external light up through the bottom of the stage; however, most microscopes now employ a low-voltage bulb.
  • Specimen or slide – The subject of study is the item being examined. Most examples are preserved on slides, thin rectangles of glass flat on one side.
  • Stage – The flat surface on which the slide is mounted.
  • Stage clips – The slide is locked in place by sturdy metal clips.
  • Stage height adjustment (Stage Control) – The knobs on either side of the speaker allows you to move the stage left and right, or up and down.
  • Iris diaphragm – The objective light is altered by changing the aperture.
  • Condenser – The illuminator’s light is gathered and focused on the observed specimen.
  • Base – The microscope’s foundation is where the illuminator is placed.

a lady preparing a microscope and discussing the function of the nosepiece

How Does a Compound Microscope Work?

The various components of a microscope work together: light from the illuminator passes through the aperture, the slide, and the objective lens, where the image of the specimen is magnified.

The image is then magnified even further as it travels up the microscope’s body tube to the eyepiece, increasing the viewer’s picture.

The next step is to learn how to use and adjust your compound microscope. It’s also critical to understand and appreciate the proper techniques for cleaning your scope.

A Spotlight on Nosepiece Microscope

The microscope nosepiece, often called the revolving turret, is located below the microscope’s head and secures the objective lens over the stage aperture by rotating in either direction. The type of microscope determines how many objectives can be housed in the microscope nosepiece.

The nosepiece microscope works the way a revolver gun works. The cylinder has the bullets lined up with the barrel and fired by the pin. A person using a microscope will initiate the same spinning of the nosepiece to lock it in place in preparation for viewing.

A standard optical microscope’s revolving nosepiece is a critical component. The optical microscope, used in schools and laboratories, is the most common type of microscope because of its low cost and ease of use compared to other microscopes. A user should understand the revolving nosepiece of an optical microscope to utilize the instrument properly.

Where is the Microscope Nosepiece Located?

rotating nosepiece microscope function

The revolving nosepiece is between the ocular lens (the eyepiece) and the stage (where the microscope holds slides and other objects for viewing). The revolving nosepiece attaches to the microscope’s arm at the bottom on almost all models. The revolving nosepiece is circular and has three or four cone-shaped lenses attached to it. The revolving nosepiece may have a serrated edge for easier gripping and rotation.

What is the Purpose of Having a Nosepiece Microscope?

Because the nosepiece spins, it may be rotated to provide different magnification levels. Though the level of magnification varies with various models, most microscopes come with a low power lens with around 5x magnification and a high power lens with about 100x magnifying.

This approach is advantageous because it allows the user to detect items with a low-power lens and then look at them in greater detail with the high-power one. If the microscope didn’t include a revolving nosepiece, it would only provide one level of magnification.

What are the Microscope Nosepiece Functions?

The microscope’s revolving nosepiece is used to interchange the objective lenses quickly and efficiently. Objective lenses come in various magnifications, with the nosepiece able to accommodate 3 to 5 objectives.

Following a few minutes of study, the user can easily swap between nosepieces to adjust for different magnification levels and field-of-view sizes. This precision allows the objective lens to remain aligned and centered with the sample, eliminating the need to refocus a slide.

The revolving nosepiece was patented in 1928, and it was for time-saving purposes that the invention was advertised. You can see below that the modern nosepiece is somewhat different from the original design, but the fundamentals are almost the same.

How to Use the Microscope Nosepiece?

The revolving nosepiece rotates by grasping the objective along the etched grip section of the objective lens. Then it is turned clockwise or counterclockwise, depending on which purpose you’re attempting to lock into position. If the revolving nosepiece on your microscope has an etched grip, as with some larger microscopes, you should utilize it to turn the nosepiece.

Before using the microscope, make sure the lowest power objective is in place by listening for the audible click sound. The next step is to rotate the nosepiece to a higher-power objective after focusing on a low-powered one. Then once you find focus again, you will turn the nosepiece again to the higher power objective and repeat this process until you reach the desired magnification.

Caring for your Microscope Nosepiece

The lenses on the revolving nosepiece may become dirty through regular usage, especially if oil or water is applied to the slide. The easiest method to clean the lenses is to use lens tissue and carefully wipe the surface. Users may also blow compressed air through the equipment. It is not recommended to blow on the lens or eyepiece to remove particles because this might cause moisture from their breath to condense on the nosepiece and lenses. Users using immersion oil should wipe the oil from the lens, nosepiece, and other microscope components with lens tissue after viewing a slide as quickly as possible.

function of revolving nosepiece in compound microscope

Troubleshooting the Nosepiece Microscope

There have been several reports regarding the microscope nosepiece becoming loose and the rotating mechanism not rotating in a controlled manner. If you find that your microscope’s nosepiece is open, check the screws and try tightening it. If it’s too tight, you may loosen it a bit, or if it’s too loose, which is generally the case, you can tighten it.

How to Remove an Objective From the Microscope Nosepiece?

There are many reasons why a person may want to remove their objective lenses from the nosepiece, although the most frequent is cleaning. Simply twist it to the left like a screw and unscrew it with your hand to take out an objective.

Clean it with compressed air, lens tissue, and water to clear out any dirt accumulated over time. A dirty objective can negatively impact the appearance of samples you are viewing.

Overall, the nosepiece microscope is a valuable accessory for most microscopes today, providing high magnification levels and precise user adjustments. If you require a replacement or additional nosepiece, it’s easy to find them online.

Twist the objective lens to the left and check for threading to return the objective. It’s often simpler to twist the objective lens to the left to find it and then begin twisting the objective lens to the left.

Conclusion

The revolving nosepiece is an essential component of a microscope’s operation. This part of the microscope has made it easier for users when switch between objectives. The nosepiece also helps to keep the lenses clean and free of dirt and debris. You may quickly change objective lens magnifications and maintain the specimen fixed while using the nosepiece. The lenses must be kept clean to prevent degradation of the image.

The nosepiece should be checked for proper function before each use. Additionally, if you need to remove or replace your microscope’s nosepiece, this can be quickly done by unscrewing the objective lens and then screwing it back in place.
