A binocular compound microscope lets you view thin, translucent specimens — cells, microorganisms, blood smears — at high magnification while keeping both eyes open for reduced strain during long viewing sessions. Classrooms, teaching labs, and clinics rely on this design because it pairs the optical reach of a compound scope with the ergonomic comfort of two eyepieces instead of one. The six models below span cordless student microscopes, lab-grade OMAX units with included slides, and camera-equipped compound scopes for capturing what you see. If you’re not yet sure a compound design is the right call, see our compound vs. stereo microscope comparison before committing.
What to Look For in a Binocular Compound Microscope
Magnification range is the first spec to check. Student and classroom models typically span 40X to 2500X across four to six objective and eyepiece combinations, which covers everything from plant tissue to bacterial staining. Look at the objective lenses next — achromatic objectives correct chromatic aberration and are the standard for student and lab microscopes at this price point. The binocular head matters more than buyers expect: a Siedentopf head with interpupillary and dioptric adjustment lets each user set the eyepiece spacing and focus independently, which is essential in a shared classroom or lab setting. Stage type (single-layer vs. double-layer mechanical), illumination (LED with a fly-eye lens for even light distribution), and focus mechanism (coaxial coarse and fine knobs) round out the core checklist — see our guide to the parts of a microscope for how each of these fits together. Finally, decide whether you need image capture — a built-in USB camera or an attached digital display adds the ability to record and measure what’s on the slide, at the cost of some added bulk and price.
Analog, Camera-Equipped, and Screen-Based Compound Microscopes
Three configurations cover most buyers. A standard analog binocular compound microscope, like the OMAX M82E series, is the simplest and most affordable option — you view specimens directly through the eyepieces with no computer or screen involved, which suits students and hobbyists who just need reliable optics. A camera-equipped compound microscope adds a USB camera in place of one eyepiece path or alongside the binocular head, streaming a live image to a connected computer for capture, measurement, and sharing — a fit for teachers demonstrating to a class or technicians documenting samples. A microscope with a built-in digital display, such as the AmScope B120C-R with its 7-inch screen, replaces the need for a computer entirely, letting multiple viewers see the specimen at once without crowding around eyepieces — useful for group teaching or quality-control stations on a bench.
Power source is worth a second look too. Most binocular compound microscopes run on a standard AC adapter, but rechargeable USB-C models with battery backup — like the B120C-R — let you use the scope away from an outlet, which matters for field demonstrations or classrooms without convenient bench power.
| Model | Screen | Magnification | Sensor | Video | Connectivity | Power |
|---|---|---|---|---|---|---|
| AmScope B120C-R | None (eyepiece viewing) | 40X–2500X | None (optical only) | None | N/A | USB-C / rechargeable AA batteries |
| AmScope B120C-R w/ 7″ Display | 7 in digital display | 40X–2500X | Integrated camera (DMH series) | 1080p | Built-in display head | USB-C / rechargeable AA batteries |
| OMAX M82E | None (eyepiece viewing) | 40X–2000X | None (optical only) | None | N/A | AC adapter |
| OMAX M82ES-SC100-LP100 | None (eyepiece viewing) | 40X–2000X | None (optical only) | None | N/A | AC/DC adapter, 100–240V |
| AmScope B120 w/ 5MP Camera | None (computer required) | 40X–2500X | 5MP USB camera | Live capture via USB software | USB | AC adapter |
| AmScope B120 w/ 0.3MP Camera | None (computer required) | 40X–2500X | 0.3MP USB 2.0 camera | Live capture via USB software | USB 2.0 | AC adapter |

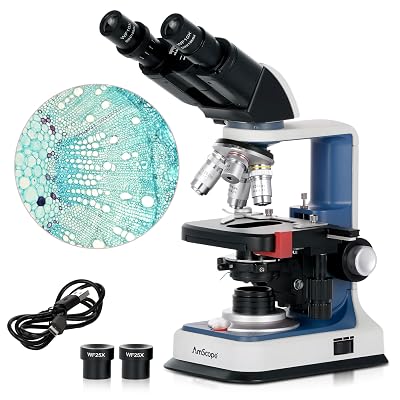

1. AmScope B120C-R – USB-C Rechargeable Power for Cordless Classroom Use
The AmScope B120C-R is a binocular compound microscope that delivers 40X to 2500X magnification across 10X and 25X eyepieces paired with color-coded achromatic objectives. It is built for students and professionals who need a compact, economical scope without sacrificing viewing comfort. The Siedentopf binocular head inclines 30 degrees and rotates a full 360 degrees, with interpupillary and dioptric adjustment for multiple users sharing the same instrument. It runs on either USB-C power or included rechargeable AA batteries, which sets it apart from the fixed AC-only OMAX models in this lineup — a real advantage for classrooms without a bench outlet at every station. A 3-axis mechanical stage with low-position controls and coaxial coarse/fine focus round out the ergonomics, while the daylight-balanced LED illuminator uses a fly-eye lens for even lighting across the field of view. See AmScope’s full compound microscope lineup for how this model fits into their broader range.
✅ Pros
- USB-C and rechargeable AA battery dual power for cordless use
- 40X–2500X range across six eyepiece/objective combinations
- Siedentopf head rotates 360° with dioptric adjustment
- 3-axis mechanical stage with low-position controls
- Daylight-balanced LED with fly-eye lens for even illumination
❌ Cons
- No built-in camera or display for image capture
- Battery life depends on included AA cells, not a sealed pack
- Achromatic objectives, not the higher-end plan/apochromatic tier
2. AmScope B120C-R with 7″ Digital Display – Compound Microscope with Built-In Screen
The AmScope B120C-R with 7″ Digital Display is a binocular compound microscope that replaces the standard eyepiece head with a DMH series camera-and-monitor unit, showing live 1080p images directly on a 7-inch screen. It is built for classrooms and group demonstrations where multiple viewers need to see the same specimen at once without lining up at the eyepieces. It shares the same 40X-2500X magnification range and 3-axis mechanical stage as the standard B120C-R, and it retains USB-C and rechargeable AA battery power for use away from an outlet. The built-in software supports hue, saturation, and brightness adjustment along with calibration and measurement, which the analog and single-camera models in this roundup do not offer without a separate computer.
✅ Pros
- 7-inch screen shows live 1080p image without a computer
- Built-in calibration and measurement software
- Same 40X–2500X range and mechanical stage as the standard B120C-R
- USB-C and rechargeable battery power
- Good for group viewing and classroom demonstration
❌ Cons
- No traditional binocular eyepieces for direct viewing
- Camera head adds bulk and cost over the standard model
- Screen resolution caps out at 1080p
3. OMAX M82E Series – Compact Lab Microscope with Coaxial Focus
The OMAX M82E Series is a binocular compound microscope that offers 40X to 2000X magnification through four achromatically-corrected objective lenses and two pairs of eyepieces. It is built for labs and classrooms that want essential compound-scope functionality with professional-level refinements rather than digital extras. The adjustable binocular viewing head uses sliding interpupillary adjustment and rotates a full 360 degrees, matching the ergonomic flexibility of the AmScope models without the added cost of a camera or display. It runs on a standard AC adapter and skips battery power entirely, which keeps the price point lower than the digitally equipped units in this roundup. Full specs for the series are available on OMAX’s own site.
✅ Pros
- 40X–2000X range with four achromatic objectives
- Double-layer mechanical stage for precise slide positioning
- Coaxial coarse/fine focus knob for smooth adjustment
- 360° rotating binocular head with sliding interpupillary adjustment
- Simpler, lower-cost design without digital components
❌ Cons
- No camera or screen for image capture
- AC adapter only, no battery or USB power option
- Lower top magnification than the B120C-R and B120 models
4. OMAX M82ES-SC100-LP100 – Compound Microscope with Slides and Accessories Included
The OMAX M82ES-SC100-LP100 is a binocular compound microscope that delivers 40X to 2000X total magnification through WF10X and WF20X eyepieces paired with achromatic DIN 4X, 10X, 40X(S), and 100X(S, oil) objectives. It is built for classrooms and labs that want a ready-to-use setup, since it ships with 100 blank glass slides, 100 cover slips, and 50 sheets of lens cleaning paper included. The 45-degree inclined, 360-degree swiveling binocular head has sliding interpupillary adjustment from 55mm to 75mm and diopter adjustment on both eyetubes, while the double-layer X-Y mechanical stage with a stage-upward locking mechanism protects objectives and slides during transport. Illumination comes from an adjustable-intensity LED through an NA1.25 Abbe condenser with iris diaphragm, and the full solid-metal frame carries a 5-year manufacturer’s warranty on parts and labor.
✅ Pros
- Ships with 100 slides, 100 cover slips, and lens cleaning paper
- Four achromatic DIN objectives including 100X oil
- NA1.25 Abbe condenser with adjustable iris diaphragm
- Stage-upward locking mechanism protects objectives and slides
- 5-year manufacturer warranty on parts and labor
❌ Cons
- No camera or digital display option
- AC/DC adapter only, no battery power
- Oil objective requires extra care and cleanup
5. AmScope B120 with 5MP USB Camera – Compound Microscope for Digital Image Capture
The AmScope B120 with 5MP USB Camera is a binocular compound microscope that pairs a Siedentopf head with a 5MP USB microscope camera and professional software for capturing and analyzing images. It is built for students and professionals who need to document specimens on a connected computer rather than view through eyepieces alone. It shares the 40X to 2500X magnification range with the other B120C-R models in this lineup and uses the same daylight-balanced LED with a fly-eye lens for even illumination. Unlike the B120C-R, this unit runs on a standard AC adapter rather than USB-C or battery power, trading portability for a higher-resolution 5MP sensor than the 0.3MP camera on the next model.
✅ Pros
- 5MP USB camera for higher-resolution image capture
- Professional software for image analysis and measurement
- 40X–2500X range, same as the B120C-R models
- Daylight-balanced LED with fly-eye lens
- Economical pricing for students and professionals
❌ Cons
- Requires a connected computer to use the camera
- AC adapter only, no battery or USB-C power
- No built-in display for standalone viewing
6. AmScope B120 with 0.3MP USB Camera – Budget-Friendly Compound Microscope with Camera
The AmScope B120 with 0.3MP USB Camera is a binocular compound microscope that includes a 0.3MP USB 2.0 microscope camera with cross-platform software for Windows, Mac, and Linux. It is built for students and professionals who want basic image capture at a lower cost than the 5MP version in this roundup. It shares the same 40X to 2500X magnification range, Siedentopf head, and daylight-balanced LED illumination as its sibling models. The lower-resolution sensor makes it best suited to quick reference captures and classroom demonstrations rather than detailed photomicrography, where the 5MP camera model has a clear edge.
✅ Pros
- Cross-platform software supports Windows, Mac, and Linux
- 40X–2500X range with the same optics as the 5MP model
- Lower price point than the 5MP camera version
- Siedentopf head with standard ergonomic adjustments
- Daylight-balanced LED with fly-eye lens
❌ Cons
- 0.3MP sensor is low resolution for detailed image capture
- Requires a connected computer to use the camera
- AC adapter only, no battery or USB-C power
Also Tested
A few more compound microscopes we’ve reviewed in full — including some monocular options for readers open to a single eyepiece.
- Compound Microscope 40X-2500X — a straightforward budget compound scope worth comparing on spec alone. Full review →
- AmScope B120C — A budget student-grade binocular compound scope worth comparing on price. Full review →
- AmScope M150C-I — Monocular rather than binocular, but a solid pick for homeschool biology. Full review →
- SWIFT SS121 — Another monocular option, built specifically for student and home-schooling use. Full review →
Frequently Asked Questions
What magnification do I need for a binocular compound microscope?
For general classroom and hobbyist use, 40X to 400X covers plant cells, pond life, and basic tissue samples. Bacterial and blood smear work typically needs the 1000X or 2000X+ range with an oil-immersion objective, which the OMAX M82ES-SC100-LP100 includes.
Do I need a computer to use a binocular compound microscope?
No, unless you choose a camera-equipped model. The OMAX M82E series and M82ES-SC100-LP100 in this roundup are viewed entirely through the eyepieces. Camera models like the AmScope B120 with a 5MP or 0.3MP USB camera require a connected computer to display and save images, while the B120C-R with the 7-inch display works independently of a computer.
What is the difference between a Siedentopf head and a fixed binocular head?
A Siedentopf head allows independent rotation of the eyepiece tubes for interpupillary adjustment while keeping the optical path aligned, which is standard on all six models in this roundup. Fixed heads, found on older or lower-cost scopes, don’t allow this adjustment and are harder to share between users with different eye spacing.
Are these binocular compound microscopes suitable for kids?
Yes, with supervision. The AmScope B120C-R and B120 series are commonly used in middle and high school classrooms because of their durable metal frames and straightforward focus controls. Younger children may find loading slides and adjusting diopters easier with an adult’s help.
How do I clean and maintain a binocular compound microscope?
Use lens cleaning paper (included with the OMAX M82ES-SC100-LP100) and a small amount of lens cleaning solution on the objectives and eyepieces only — never spray solution directly onto the optics. Wipe the stage and body with a dry cloth, and store the microscope with a dust cover when not in use. If you’re new to loading specimens, our guide on how to prepare microscope slides covers wet mounts and dry mounts step by step.
What’s the difference between the two camera-equipped AmScope B120 models?
The main difference is sensor resolution: one includes a 5MP USB camera for higher-detail image capture, while the other includes a 0.3MP USB 2.0 camera at a lower price point. Both use the same optics, magnification range, and Siedentopf head.
Can I use a binocular compound microscope without a power outlet?
Only the AmScope B120C-R models in this roundup support this — they run on USB-C power or included rechargeable AA batteries. The OMAX models and the standard camera-equipped B120 units require a wall outlet via their AC adapters.
Conclusion
Buyers who want the simplest, most affordable option will find it in the OMAX M82E series, while those who need a ready-to-use classroom kit with slides and accessories should look at the M82ES-SC100-LP100. Anyone documenting specimens for reports or grading should consider the camera-equipped AmScope B120 models, and classrooms or labs without reliable bench power will get the most use out of the USB-C rechargeable B120C-R — with the 7-inch display version adding group viewing without a computer. Across all six, the deciding factors are the same: how much magnification you actually need, whether you require image capture, and whether portability matters more than a fixed AC connection.
Have you used any of these binocular compound microscopes in your classroom or lab? Share your experience or ask a question in the comments below.
